ORTOLED adds the new Quantum Board Evo 150W Samsung series to its catalog, perfect for small growing areas and for square surfaces.
The Quantum Board Evo 150W Samsung lamp is a light and handy fixture that produces high levels of PPF (408 umol / s) and a photonic efficiency of 2.7 umol / J, perfectly covering 0.5mq-0.64mq of cultivable area.
The Total Agro Ortoled luminosity spectrum produced by the combination of Samsung lm201b 3000K 5000K LEDs + Honglitronic SMD3535 3w 660nm 450nm LEDs guarantees excellent performance and an excellent level of light penetration without overheating the apical part of the plants.

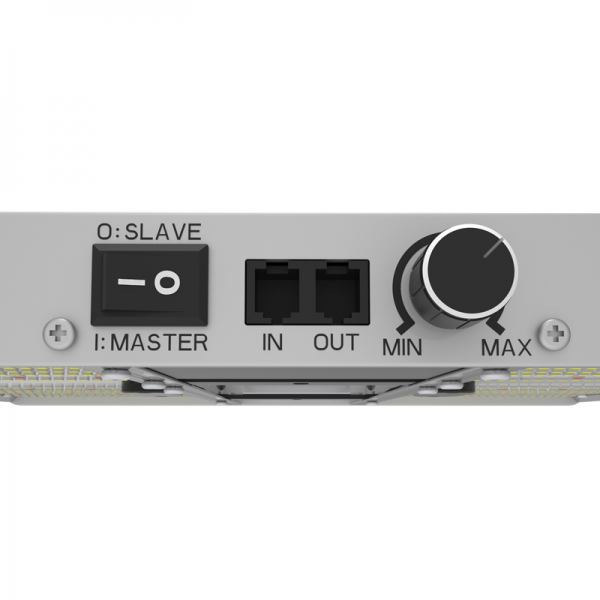

In particular, the EVO series can be connected in series and controlled through the Master / Slave function or through any external 0-10V controller device.
The Quantum Board Ortoled EVO Samsung series is built using the highest quality Sosen® power supplies with integrated Ortoled Step Control dimmer that allows the regulation of the brightness with 0-25% -50% -75% and 100% steps in order to support the growth and flowering of the plant without wasting electricity.

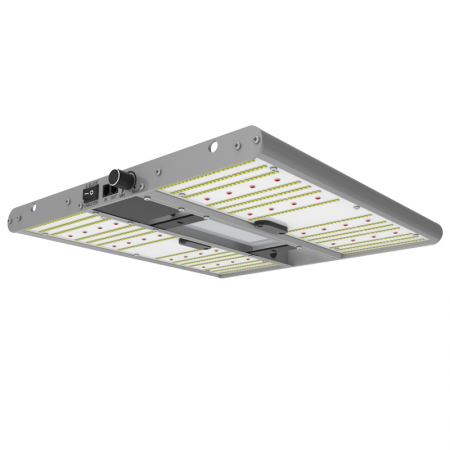

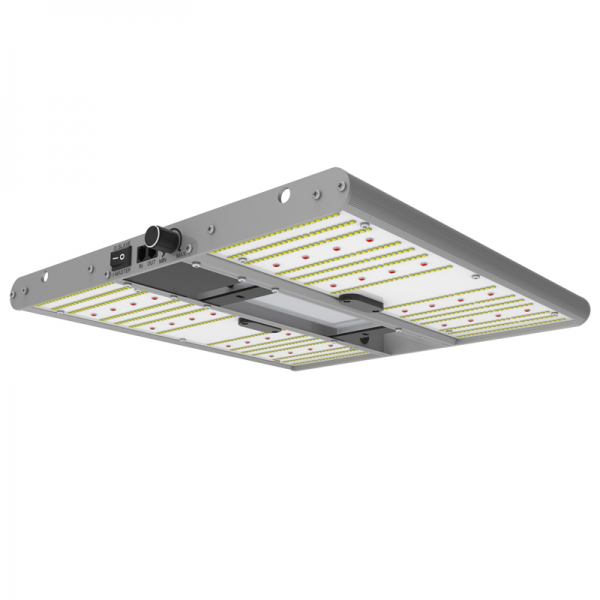

The Samsung lm201b 3000K 5000K LEDs + Honglitronic SMD3535 3w 660nm 450nm LEDs diodes are mounted evenly distributed over the entire body of the lamp in order to ensure excellent distribution and perfect dissipation of the heat produced.
The degree of protection is IP65 with ultra-transparent resin to protect the diodes in order to keep the luminous flux unaltered.
Total Agro spectrum
The combination and coloring of the installed LEDs collects all the bands necessary for the plant, guaranteeing the optimal flow from growth to flowering.
Quantum Board Evo 150W LED distribution
• Warm White 3000K: 350 LEDs
• White 5000K: 660nm: 105 LEDs
• Blue 450-460nm: 10 LEDs
• Deep Red 660nm: 30 LEDs

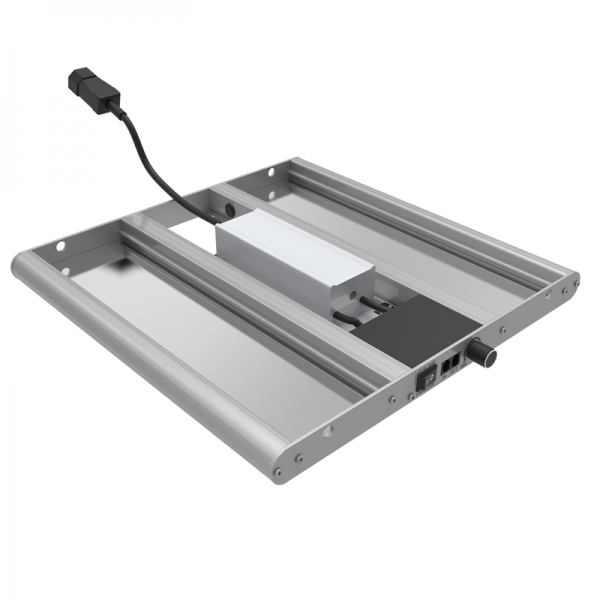

Static cooling dashboard and Sound zero system
The new Sound zero dashboard designed for the Ortoled Quantum Board EVO 2.7 series provides excellent dissipation of the heat produced by the LEDs. In this way the lamp does not need an additional cooling system. There will therefore be no external fans. Thanks to the Sound zero result system, it is a highly performing and extremely silent lamp
Technical Specifications Ortoled Quantum Board 150W Evo:
- Efficacy: 2.7 µmol / J
- PPF: 405 µmol / s
- Input voltage: AC 100-277V / 50-60HZ
- Lamp control in master / slave series or via 0-10V device
- Power Consumption: 150W
- Illuminable area: 0.5mq-0.64mq
- Distance from the plants: min.40 mx.70 cm
- Duration: 60,000 hours
- Light distribution: 120 °
- Light source: Samsung lm201b 3000K 5000K LEDs + Honglitronic SMD3535 3w 660nm 450nm diodes
- Dimmable: OFF-25% -50% -75% -100% with Ortoled Step Control dimmer
- Weight: 1.8 Kg
- Dimensions: 350x350x40 mm
- Spectrum: Total Argo
Items included in the package:
- 1 x Ortoled Quantum Evo Sound Zero led panel
- 1 x Power cable
- 2 x Carabiners for suspension
- 1 x 3m RJ11 signal cable
Main Features Ortoled Quantum Board EVO 150W:
- High efficiency 2.7 µmol / J
- High PPF output for 408 µmol / s at high intensity
- Lamp control in master / slave series or via 0-10V device
- High quality Sosen LED driver
- Protective cover technology with high transparency resin
- Total Agro spectrum
- Improved light diffusion and uniformity and Sound zero system
- Compact design ideal for a growing area up to 0.5mq-0.64mq
- Fully dimmable
- Easy to use Plug & Play assembly
